Plot diversification rates and regime shifts from BAMM on phylogeny

Plot on a time-calibrated phylogeny the evolution of diversification rates and the location of regime shifts estimated from a BAMM (Bayesian Analysis of Macroevolutionary Mixtures). Each branch is colored according to the estimated rates of speciation, extinction, or net diversification stored in an object of class "bammdata". Rates can vary along time, thus colors evolve along individual branches.

This function is a wrapper of original functions from the R package {BAMMtools}:

• Step 1: Use BAMMtools::plot.bammdata() to map rates on the phylogeny.

• Step 2: Add the location of regime shifts with BAMMtools::addBAMMshifts() (if add_regime_shifts = TRUE).

Usage

plot_BAMM_rates(
  BAMM_object,
  rate_type = "net_diversification",
  method = "phylogram",
  configuration_type = "MAP",
  sample_index = 1,
  regimes_fill = "grey",
  regimes_size = 1,
  regimes_pch = 21,
  regimes_border_col = "black",
  regimes_border_width = 1,
  ...,
  add_regime_shifts = TRUE,
  adjust_size_to_prob = TRUE,
  display_plot = TRUE,
  PDF_file_path = NULL
)

Arguments

BAMM_object

Object of class "bammdata", typically generated with prepare_diversification_data(), that contains a phylogenetic tree and associated diversification rate mapping across selected posterior samples. It works also for BAMM_object updated for a specific focal_time using update_rates_and_regimes_for_focal_time(), or the deepSTRAPP workflow with run_deepSTRAPP_for_focal_time and run_deepSTRAPP_over_time().

rate_type

A character string specifying the type of diversification rates to plot. Must be one of 'speciation', 'extinction' or 'net_diversification' (default).

method

A character string indicating the method for plotting the phylogenetic tree.

• method = "phylogram" (default) plots the phylogenetic tree using rectangular coordinates.

• method = "polar" plots the phylogenetic tree using polar coordinates.

configuration_type

A character string specifying how to select the location of regime shifts across posterior samples.

• configuration_type = "MAP": Use the average locations recorded in posterior samples with the Maximum A Posteriori probability (MAP) configuration. This regime shift configuration is the most frequent configuration among the posterior samples (See BAMMtools::getBestShiftConfiguration()). This is the default option.

• configuration_type = "MSC": Use the average locations recorded in posterior samples with the Maximum Shift Credibility (MSC) configuration. This regime shift configuration has the highest product of marginal probabilities across branches (See BAMMtools::maximumShiftCredibility()).

• configuration_type = "index": Use the configuration of a unique posterior sample whose index is provided in sample_index.

sample_index

Integer. Index of the posterior samples to use to plot the location of regime shifts. Used only if configuration_type = index. Default = 1.

regimes_fill

Character string. Set the color of the background of the symbols showing the location of regime shifts. Equivalent to the bg argument in BAMMtools::addBAMMshifts(). Default is "grey".

regimes_size

Numeric. Set the size of the symbols showing the location of regime shifts. Equivalent to the cex argument in BAMMtools::addBAMMshifts(). Default is 1.

regimes_pch

Integer. Set the shape of the symbols showing the location of regime shifts. Equivalent to the pch argument in BAMMtools::addBAMMshifts(). Default is 21.

regimes_border_col

Character string. Set the color of the border of the symbols showing the location of regime shifts. Equivalent to the col argument in BAMMtools::addBAMMshifts(). Default is "black".

regimes_border_width

Numeric. Set the width of the border of the symbols showing the location of regime shifts. Equivalent to the lwd argument in BAMMtools::addBAMMshifts(). Default is 1.

...

Additional graphical arguments to pass down to BAMMtools::plot.bammdata(), BAMMtools::addBAMMshifts(), and par(). Among them, par.reset is ignored, with a message: it would make BAMMtools::plot.bammdata() restore a full par() snapshot, discarding the coordinate system of the phylogeny and rewinding the panel counter of a multi-panel layout. Graphical parameters are instead restored by plot_BAMM_rates() when it exits: every parameter the call actually changed is put back, except those describing the plot itself, which are kept so that the phylogeny can be annotated afterwards with for instance graphics::abline() or graphics::title(), as in the examples.

add_regime_shifts

Logical. Whether to add the location of regime shifts on the phylogeny (Step 2). Default is TRUE. Provide the full argument name to avoid ambiguity with the add graphical argument.

adjust_size_to_prob

Logical. Whether to scale the size of the symbols showing the location of regime shifts according to the marginal shift probability of the shift happening on each location/branch. This will only work if there is an $MSP_tree element summarizing the marginal shift probabilities across branches in the BAMM_object. Default is TRUE. Provide the full argument name to avoid ambiguity with the adj graphical argument.

display_plot

Logical. Whether to display the plot generated in the R console. Default is TRUE.

PDF_file_path

Character string. If provided, the plot will be saved in a PDF file following the path provided here. The path must end with ".pdf".

Value

The function returns (invisibly) a list with three elements similarly to BAMMtools::plot.bammdata().

• $coords: A matrix of plot coordinates. Rows correspond to branches. Columns 1-2 are starting (x,y) coordinates of each branch and columns 3-4 are ending (x,y) coordinates of each branch. If method = "polar" a fifth column gives the angle (in radians) of each branch.

• $colorbreaks: A vector of percentiles used to group macroevolutionary rates into color bins.

• $colordens: A matrix of the kernel density estimates (column 2) of evolutionary rates (column 1) and the color (column 3) corresponding to each rate value.

Details

The main input BAMM_object is the typical output of prepare_diversification_data(). It provides information on rates and regime shifts across the posterior samples of a BAMM.

$MAP_BAMM_object and $MSC_BAMM_object elements are required to plot regime shift locations following the "MAP" or "MSC" configuration_type respectively. A $MSP_tree element is required to scale the size of the symbols showing the location of regime shifts according to marginal shift probabilities. (If adjust_size_to_prob = TRUE).

The default option to display regime shift is to use the average locations from the posterior samples with the Maximum A Posteriori probability (MAP) configuration. However, sometimes, multiple configurations have similarly high frequency in the posterior samples (See BAMMtools::credibleShiftSet()). An alternative is to use the average locations from posterior samples with the Maximum Shift Credibility (MSC) configuration instead. This regime shift configuration has the highest product of marginal probabilities across branches where a shift is estimated. It may differ from the MAP configuration. (See BAMMtools::maximumShiftCredibility()).

See also

Initial functions in BAMMtools: BAMMtools::plot.bammdata() BAMMtools::addBAMMshifts()

Associated functions in deepSTRAPP: prepare_diversification_data() update_rates_and_regimes_for_focal_time() run_deepSTRAPP_for_focal_time() run_deepSTRAPP_over_time()

Author

Maël Doré

Original functions by Mike Grundler & Pascal Title in R package {BAMMtools}.

Examples

# Load BAMM output
data(whale_BAMM_object, package = "deepSTRAPP")

mfrow_ini <- par()$mfrow
par(mfrow = c(1,2))

## Plot overall mean rates with MAP configuration for regime shifts
# (rates are averaged across all posterior samples)

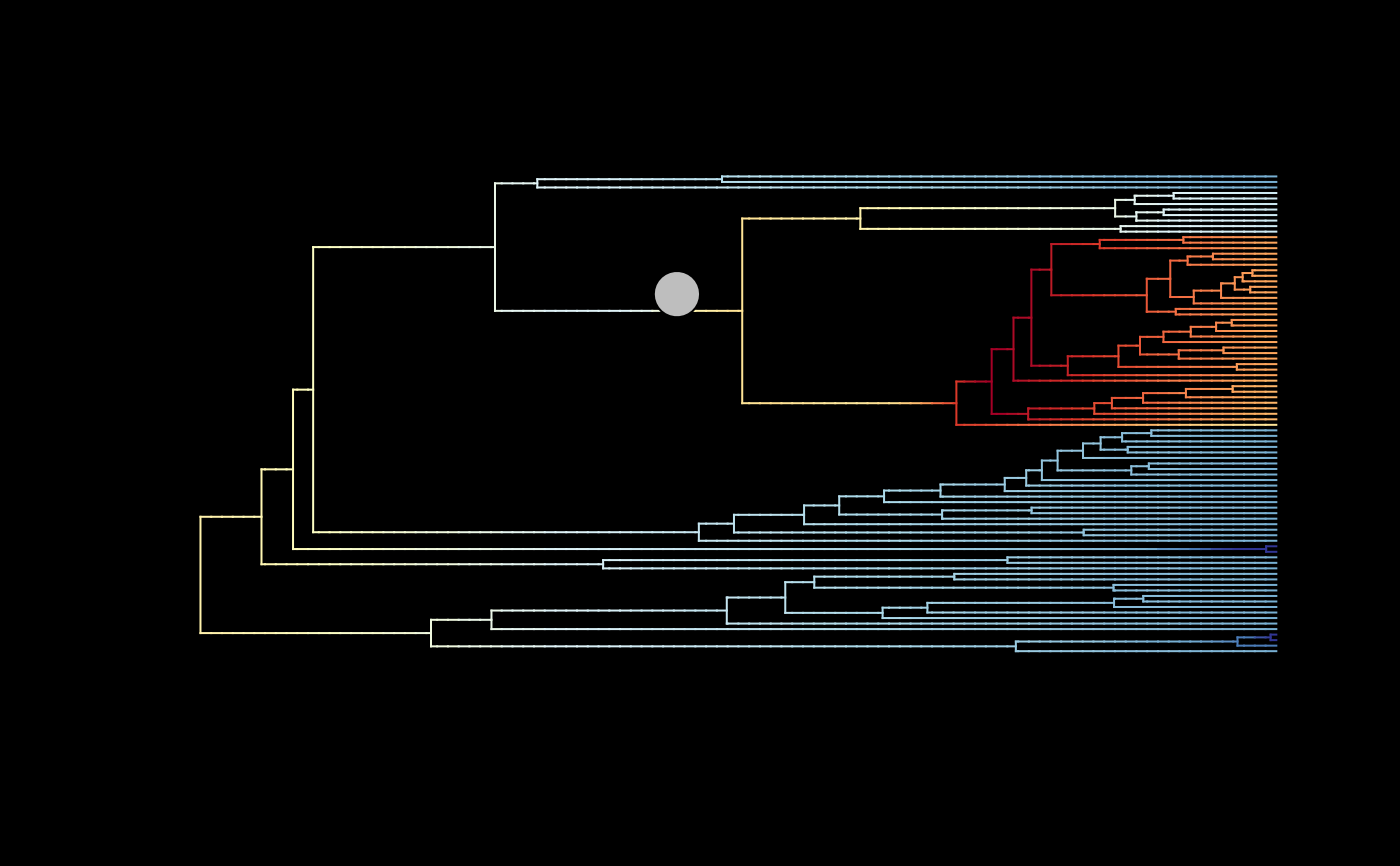

plot_BAMM_rates(whale_BAMM_object, # Use the full object to plot mean overall rates
                add_regime_shifts = TRUE,
                configuration_type = "MAP",
                regimes_size = 3, bg = "black")
title("Overall mean - MAP shift config", col.main = "white")

## Plot overall mean rates with MSC configuration for regime shifts
# (rates are averaged across all posterior samples)

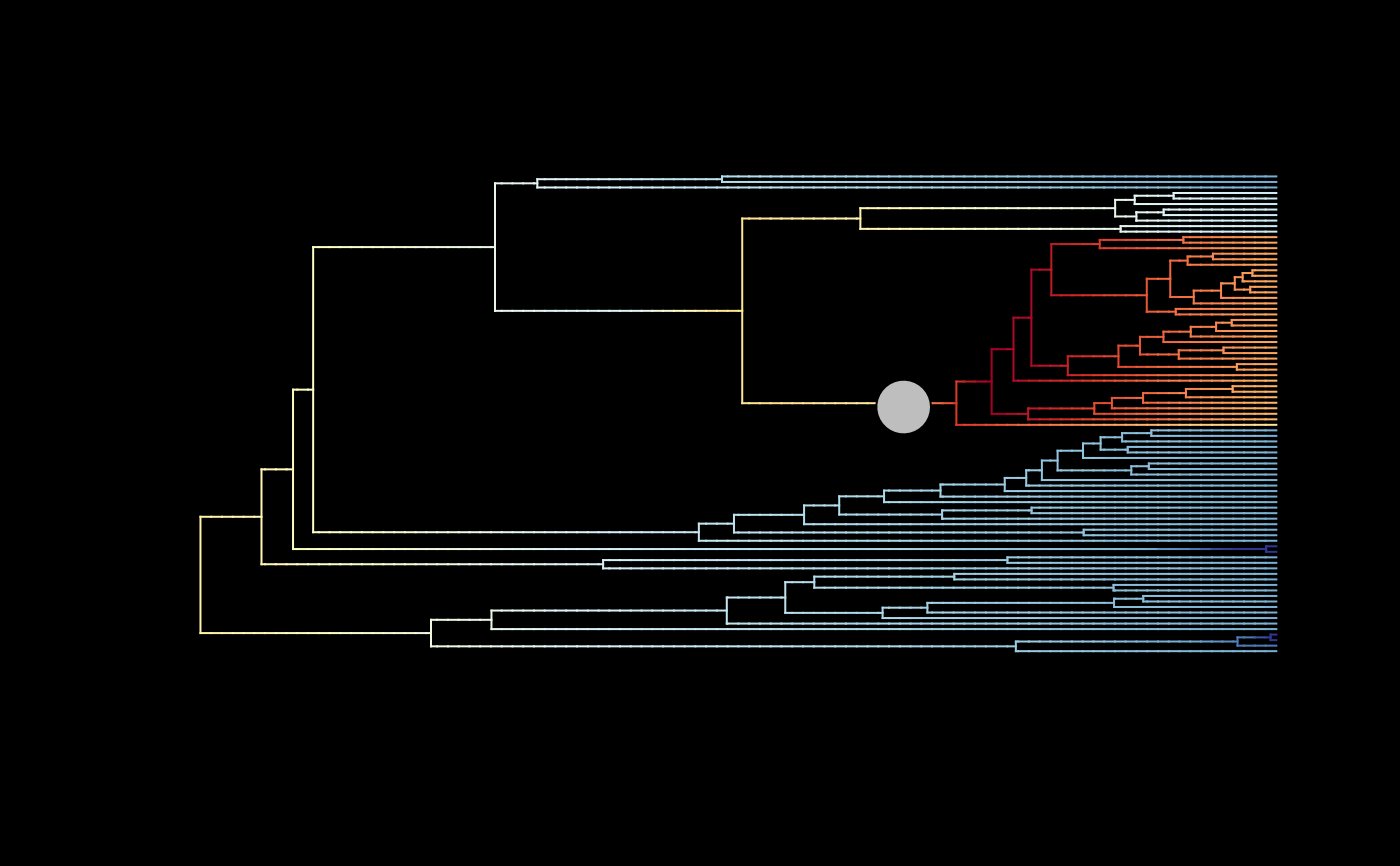

plot_BAMM_rates(whale_BAMM_object, add_regime_shifts = TRUE,
                configuration_type = "MSC",
                regimes_size = 3, bg = "black")
title("Overall mean - MSC shift config", col.main = "white")


par(mfrow_ini)
#> Warning: argument 1 does not name a graphical parameter
#> NULL


mfrow_ini <- par()$mfrow
par(mfrow = c(1,2))

## Plot mean MAP rates with regime shifts
# (rates are averaged only across MAP samples)

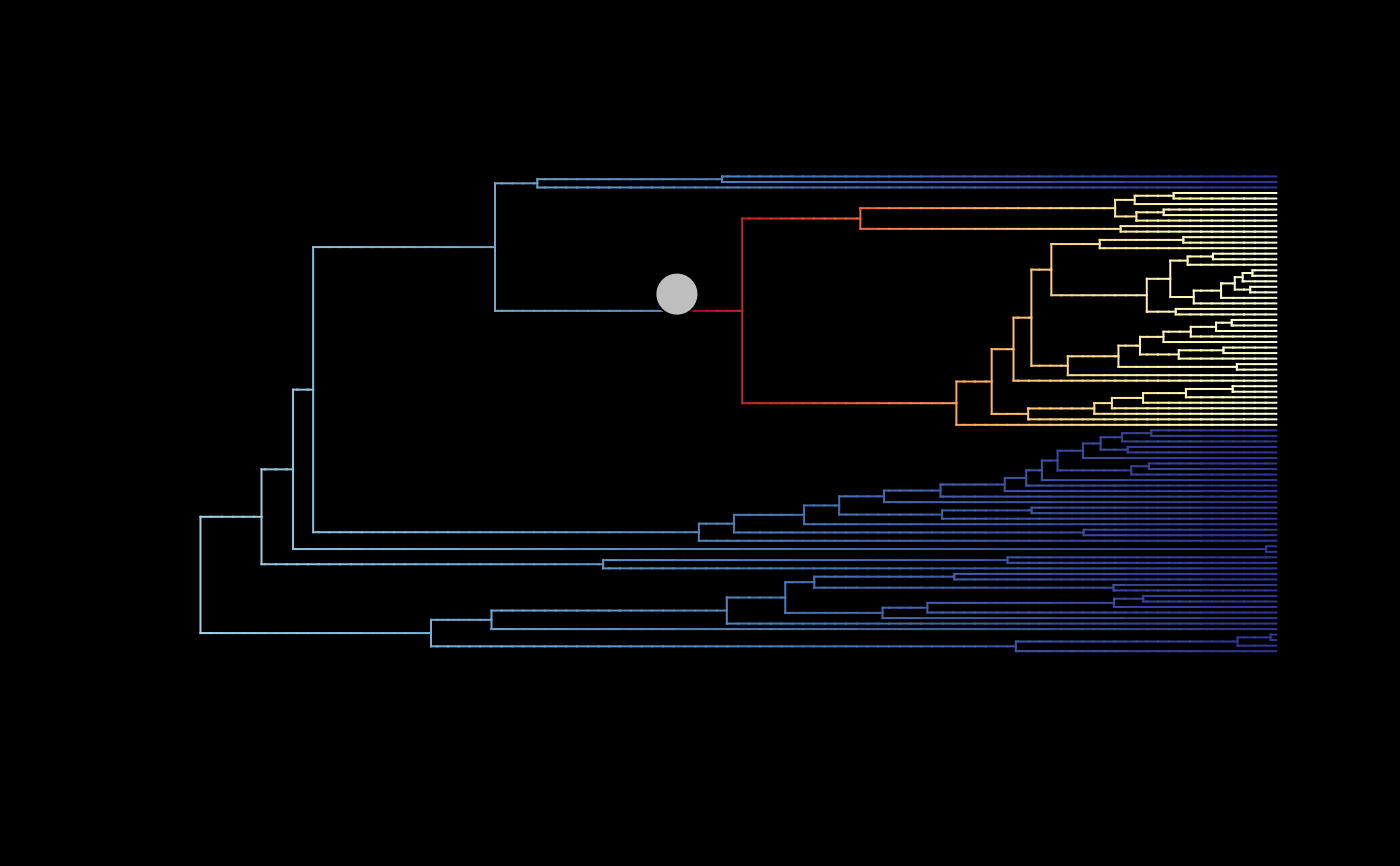

plot_BAMM_rates(whale_BAMM_object$MAP_BAMM_object, # Use the MAP object to plot mean MAP rates
                add_regime_shifts = TRUE,
                configuration_type = "index",
                # Set to index to use the regime shift location from MAP configuration
                regimes_size = 3)
title("MAP mean - MAP shift config")

## Plot mean MSC rates with regime shifts
# (rates averaged only across MSC samples)

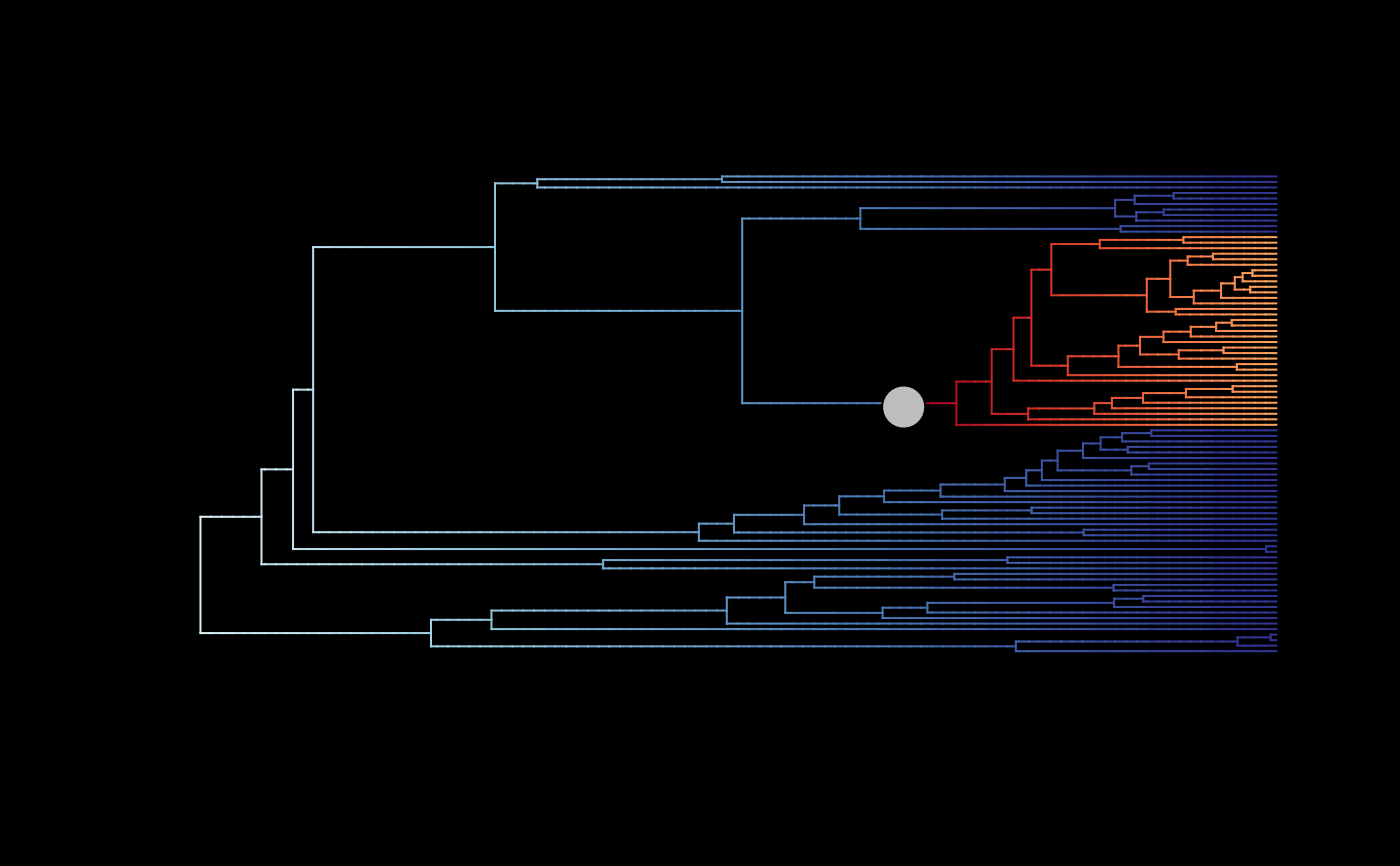

plot_BAMM_rates(whale_BAMM_object$MSC_BAMM_object, # Use the MSC object to plot mean MSC rates
                add_regime_shifts = TRUE,
                configuration_type = "index",
                # Set to index to use the regime shift data from MSC configuration
                regimes_size = 3)
title("MSC mean - MSC shift config")


par(mfrow_ini)
#> Warning: argument 1 does not name a graphical parameter
#> NULL
